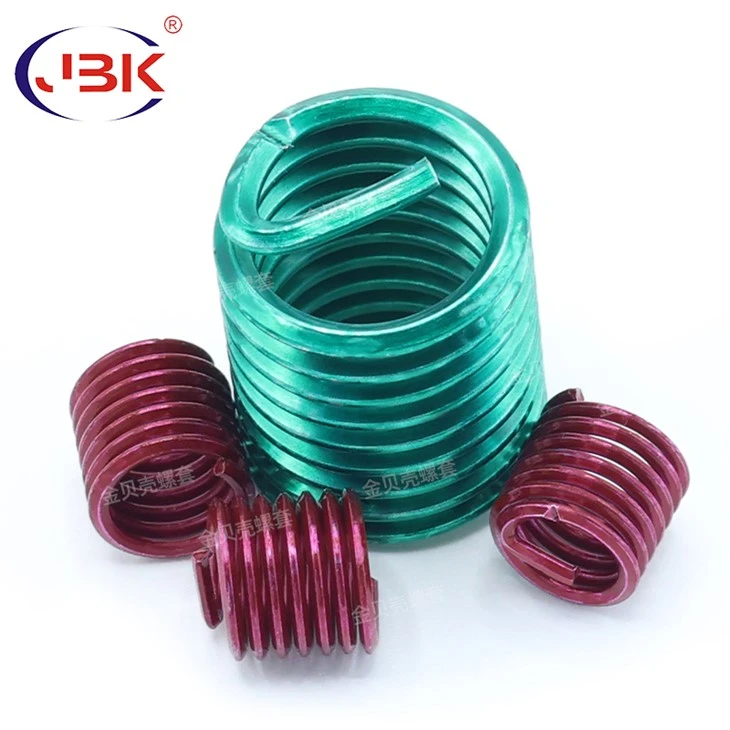

Thread Sgriw Helical
Disgrifiad Cynnyrch
Mae gosod mewnosod helical, gweithdrefn gritigol fanwl ar gyfer atgyfnerthu edau mewn maniffoldiau awyrofod, pennau silindrau modurol, a fframiau gwasg ddiwydiannol, yn dechrau gyda pharatoi'r swbstrad: drilio agorfa beilot i ddiamedr 0.05mm yn fwy na maint enwol y mewnosodiad, ac yna tapio gydag offeryn penodol ffliwt - sy'n ategu'r fflwcs 60 gradd, gan sicrhau ongl fflwcs. bondio metelegol interstitial mewn aloion fferrus neu gyd-gloi mecanyddol mewn cyfansoddion. Mae'r cam mewnosod yn defnyddio trorym-mandrel wedi'i galibro-wedi'i gyfarparu â cholad i afael tang y mewnosodiad-sy'n symud y niobium{8}}troell trwythedig (wedi'i dymheru i 32 HRC) i mewn i'r twll wedi'i dapio trwy rym cylchdro cynyddrannol (10–35 N·} ei fewnosodiadau maint-ddibynnol{100), gan achosi i'w wely-ddibynnol i mewn i'w wely allanol. agennau micro-swbstrad heb achosi craciau straen, risg a liniarir gan oddefgarwch aliniad echelinol y mandrel (±0.02mm). Post-gosod, toriad tang drwy wanwyn dyrnu llwythog-yn dileu rhwystr, tra bod elastigedd cynhenid y troellog yn dosbarthu llwythi cylchol ar draws 720 gradd o gyswllt, yn perfformio'n well na mewnosodiadau anhyblyg wrth wrthsefyll llacio dirgrynol o dan 50Hz osciliad peiriannau a chynnal cyfanrwydd ar draws {{22} gradd gritigol {0} flurfennol {0} flurfennol gwasanaethau dibynadwy iawn lle gallai methiant edau arwain at amser segur yn y system.
rhestr paramedr
|
Taflen Ddata Dechnegol Llewys Wire Cyfres Metrig - Trywyddau Bras Metrig (Metrig) |
||||||||
| Diamedr Enwol(d) | traw troellog(p) | Hyd enwol | nifer o lapiau (w) |
Diamedr allanol mewn cyflwr rhydd (Dz) |
Diamedr drilio (gwneud) |
Dyfnder drilio (L3) |
Hyd effeithiol gwirioneddol (L2) |
|
| ×d | ×L1 | |||||||
| 1.4 | 0.3 | 1d | 1.4 | 2.5 | 1.80-2.00 | 1.5 | 2.3 | 0.9 |
| 1.5d | 2.1 | 4.5 | 3 | 1.6 | ||||
| 2d | 2.8 | 7.0 | 3.7 | 2.3 | ||||
| 1.6 | 0.35 | 1d | 1.6 | 3.1 | 2.06-2.26 | 1.7 | 2.7 | 1.1 |
| 1.5d | 2.4 | 4.5 | 3.5 | 1.9 | ||||
| 2d | 3.2 | 6.2 | 4.3 | 2.7 | ||||
| 2.5d | 4.0 | 8.0 | 5.1 | 3.5 | ||||
| 3d | 4.8 | 10.1 | 5.9 | 4.3 | ||||
| 2 | 0.4 | 1d | 2.0 | 3.2 | 2.53-2.70 | 2.1 | 3.6 | 1.6 |
| 1.5d | 3.0 | 5.3 | 4.6 | 2.6 | ||||
| 2d | 4.0 | 7.4 | 5.6 | 3.6 | ||||
| 2.5d | 5.0 | 9.5 | 6.6 | 4.6 | ||||
| 3d | 6.0 | 11.6 | 7.6 | 5.6 | ||||
| 2.5 | 0.45 | 1d | 2.5 | 3.6 | 3.20-3.70 | 2.6 | 4.3 | 2.1 |
| 1.5d | 3.75 | 5.9 | 5.6 | 3.3 | ||||
| 2d | 5.0 | 8.2 | 6.8 | 4.6 | ||||
| 2.5d | 6.25 | 10.5 | 8.1 | 5.8 | ||||
| 3d | 7.5 | 12.8 | 9.3 | 7.0 | ||||
| 3 | 0.5 | 1d | 3.0 | 4.2 | 3.80-4.35 | 3.1 | 5.0 | 2.5 |
| 1.5d | 4.5 | 6.8 | 6.5 | 4.0 | ||||
| 2d | 6.0 | 9.4 | 8.0 | 5.5 | ||||
| 2.5d | 7.5 | 12 | 9.5 | 7 | ||||
| 3d | 9.0 | 14.6 | 11.0 | 8.5 | ||||
| 4 | 0.7 | 1d | 4.0 | 4 | 5.05-5.60 | 4.2 | 6.8 | 3.3 |
| 1.5d | 6.0 | 6.6 | 8.8 | 5.3 | ||||
| 2d | 8.0 | 9.1 | 10.8 | 7.3 | ||||
| 2.5d | 10.0 | 11.7 | 12.8 | 9.3 | ||||
| 3d | 12.0 | 14.2 | 14.8 | 11.3 | ||||
| 5 | 0.8 | 1d | 5.0 | 4.4 | 6.25-6.80 | 5.2 | 8.2 | 4.2 |
| 1.5d | 7.5 | 7.1 | 10.7 | 6.7 | ||||
| 2d | 10.0 | 9.9 | 13.2 | 9.2 | ||||
| 2.5d | 12.5 | 12.6 | 15.7 | 11.7 | ||||
| 3d | 15.0 | 15.3 | 18.2 | 14.2 | ||||
| 6 | 1 | 1d | 6.0 | 4.3 | 7.58-7.95 | 6.2 | 10.0 | 5.0 |
| 1.5d | 9.0 | 6.9 | 13.0 | 8.0 | ||||
| 2d | 12.0 | 9.6 | 16.0 | 11.0 | ||||
| 2.5d | 15.0 | 12.2 | 19.0 | 14.0 | ||||
| 3d | 18.0 | 14.9 | 22.0 | 17.0 | ||||
| 7 | 1 | 1d | 7.0 | 5.2 | 8.58-9.20 | 7.2 | 11.0 | 6.0 |
| 1.5d | 10.5 | 8.3 | 14.5 | 9.5 | ||||
| 2d | 14.0 | 11.5 | 18.0 | 13.0 | ||||
| 2.5d | 17.5 | 14.6 | 21.5 | 16.5 | ||||
| 3d | 21.0 | 17.4 | 25.5 | 20.5 | ||||
| 8 | 1.25 | 1d | 8.0 | 4.8 | 9.85-10.35 | 8.3 | 13.0 | 6.8 |
| 1.5d | 12.0 | 7.4 | 17.0 | 10.8 | ||||
| 2d | 16.0 | 10.6 | 21.0 | 14.8 | ||||
| 2.5d | 20.0 | 13.5 | 25.0 | 18.8 | ||||
| 3d | 24.0 | 16.5 | 29.0 | 22.8 | ||||
| 9 | 1.25 | 1d | 9.0 | 5.5 | 10.85-11.1 | 9.3 | 14.0 | 7.75 |
| 1.5d | 13.5 | 8.9 | 18.5 | 12.25 | ||||
| 2d | 18.0 | 12.2 | 23.0 | 16.75 | ||||
| 2.5d | 22.5 | 15.5 | 27.5 | 21.25 | ||||
| 3d | 27.0 | 18.8 | 32.0 | 25.75 | ||||
| 10 | 1.5 | 1d | 10.0 | 5.0 | 12.10-12.80 | 10.3 | 16.0 | 8.5 |
| 1.5d | 15.0 | 8.1 | 21.0 | 13.5 | ||||
| 2d | 20.0 | 11.2 | 26.0 | 18.5 | ||||
| 2.5d | 25.0 | 14.2 | 31.0 | 23.5 | ||||
| 3d | 30.0 | 17.3 | 36.0 | 28.5 | ||||
| 11 | 1.5 | 1d | 11.0 | 5.7 | 13.10-13.50 | 11.3 | 17.0 | 9.5 |
| 1.5d | 16.5 | 9.1 | 22.5 | 15.0 | ||||
| 2d | 22.0 | 12.5 | 28.0 | 20.5 | ||||
| 2.5d | 27.5 | 15.9 | 33.5 | 26.0 | ||||
| 3d | 33.0 | 19.1 | 39.0 | 31.5 | ||||
| 12 | 1.75 | 1d | 12.0 | 5.3 | 14.50-15.00 | 12.4 | 19.0 | 10.3 |
| 1.5d | 18.0 | 8.4 | 25.0 | 16.3 | ||||
| 2d | 24.0 | 11.6 | 31.0 | 22.3 | ||||
| 2.5d | 30.0 | 14.8 | 39.0 | 30.3 | ||||
| 3d | 36.0 | 18.0 | 43.0 | 34.3 | ||||
| 14 | 2 | 1d | 14.0 | 5.4 | 16.87-17.87 | 14.5 | 22.0 | 12.0 |
| 1.5d | 21.0 | 8.7 | 29.0 | 19.0 | ||||
| 2d | 28.0 | 11.9 | 36.0 | 26.0 | ||||
| 2.5d | 35.0 | 15.2 | 43.0 | 33.0 | ||||
| 3d | 42.0 | 18.4 | 50.0 | 40.0 | ||||
| 16 | 2 | 1d | 16.0 | 6.3 | 18.87-19.90 | 16.5 | 24.0 | 14.0 |
| 1.5d | 24.0 | 10.0 | 32.0 | 22.0 | ||||
| 2d | 32.0 | 13.7 | 40.0 | 30.0 | ||||
| 2.5d | 40.0 | 17.5 | 48.0 | 38.0 | ||||
| 3d | 48.0 | 21.2 | 56.0 | 46.0 | ||||
| 18 | 2.5 | 1d | 18.0 | 5.6 | 21.40-22.00 | 18.6 | 28.0 | 15.5 |
| 1.5d | 27.0 | 9.0 | 37.0 | 24.5 | ||||
| 2d | 36.0 | 12.3 | 46.0 | 33.5 | ||||
| 2.5d | 45.0 | 15.7 | 55.0 | 42.5 | ||||
| 3d | 54.0 | 19.0 | 64.0 | 51.5 | ||||
| 20 | 2.5 | 1d | 20.0 | 6.3 | 23.46-24.40 | 20.6 | 30.0 | 17.5 |
| 1.5d | 30.0 | 10.0 | 40.0 | 27.5 | ||||
| 2d | 40.0 | 13.8 | 50.0 | 37.5 | ||||
| 2.5d | 50.0 | 17.5 | 60.0 | 47.5 | ||||
| 3d | 60.0 | 21.2 | 70.0 | 57.5 | ||||
| 22 | 2.5 | 1d | 22.0 | 6.9 | 25.61-26.90 | 22.6 | 32.0 | 19.5 |
| 1.5d | 33.0 | 11.0 | 43.0 | 30.5 | ||||
| 2d | 44.0 | 15.0 | 54.0 | 41.5 | ||||
| 2.5d | 55.0 | 19.0 | 65.0 | 52.5 | ||||
| 3d | 66.0 | 23.0 | 76.0 | 63.5 | ||||
| 24 | 3 | 1d | 24.0 | 6.3 | 28.15-29.10 | 24.7 | 36.0 | 21.0 |
| 1.5d | 36.0 | 10.0 | 48.0 | 33.0 | ||||
| 2d | 48.0 | 13.7 | 60.0 | 45.0 | ||||
| 2.5d | 60.0 | 17.5 | 72.0 | 57.0 | ||||
| 3d | 72.0 | 21.2 | 84.0 | 69.0 | ||||
| 27 | 3 | 0.75d | 20.25 | 5.0 | 31.15-32.40 | 27.8 | 32.5 | 17.5 |
| 1d | 27.0 | 7.2 | 39.0 | 24.0 | ||||
| 1.5d | 40.5 | 11.4 | 52.5 | 37.5 | ||||
| 2d | 54.0 | 15.4 | 66.0 | 51.0 | ||||
| 2.5d | 67.5 | 19.5 | 79.5 | 64.5 | ||||
| 30 | 3.5 | 1d | 30.0 | 6.9 | 34.70-35.81 | 30.9 | 44.0 | 26.5 |
| 1.5d | 45.0 | 11.0 | 59.0 | 41.5 | ||||
| 2d | 60.0 | 15.0 | 74.0 | 56.5 | ||||
| 2.5d | 75.0 | 19.0 | 89.0 | 71.5 | ||||
| 3d | 90.0 | 23.0 | 104.5 | 86.5 | ||||
| 33 | 3.5 | 0.75d | 24.8 | 5.6 | 37.70-39.01 | 33.9 | 38.8 | 21.3 |
| 1d | 33.0 | 7.8 | 47.0 | 29.5 | ||||
| 1.5d | 49.5 | 12.2 | 63.5 | 46.0 | ||||
| 2d | 66.0 | 16.5 | 80.0 | 62.5 | ||||
| 36 | 4 | 0.75d | 27.0 | 5.1 | 41.33-42.67 | 37.0 | 43.0 | 23.0 |
| 1d | 36.0 | 7.0 | 52.0 | 32.0 | ||||
| 1.5d | 54.0 | 11.1 | 70.0 | 50.0 | ||||
| 2d | 72.0 | 15.2 | 88.0 | 68.0 | ||||
Cynhyrchion Cais
Cwmpas Cais Llewys Wire Dur
1. Maes Peiriannau Diwydiannol: Yn addas ar gyfer gwahanol offer peiriant trwm, offer peiriant CNC, cyrff blychau, fflansau, siafftiau trawsyrru a chydrannau eraill. Gall wella cryfder tynnol a chneifio tyllau edafu, atal llithriad a thraul edau oherwydd grym neu ddirgryniad tymor hir, ac mae'n arbennig o addas ar gyfer cryfhau edafedd swbstradau metel brau fel haearn bwrw a dur bwrw.
2. Maes Gweithgynhyrchu a Chynnal a Chadw Modurol: Fe'i defnyddir mewn rhannau allweddol megis pennau silindr injan, gorchuddion trawsyrru, cromfachau crogi siasi, ac ati. Gall ddatrys y broblem o fethiant edau o dan amodau tymheredd uchel a dirgryniad peiriannau, a gall hefyd atgyweirio tyllau edau difrodi a achosir gan ddadosod a chydosod yn aml, gan osgoi ailosod cydrannau cyfan a lleihau costau cynnal a chadw.
3. Maes Awyrofod: Yn addas ar gyfer cydrannau cryfder uchel megis offer glanio awyrennau, casinau injan, fframiau ffiwslawdd, ac ati. Oherwydd y gofynion hynod o uchel ar gyfer pwysau a dibynadwyedd offer awyrofod, gall llewys gwifrau dur ffurfio edafedd cryfder uchel ar aloion alwminiwm, aloion titaniwm a swbstradau aloi ysgafn eraill, a gallant addasu i amodau gwaith caled a thymheredd uchel, isel.
4. Maes Offer Electronig a Manwl: Wedi'i gymhwyso i gregyn a chydrannau mewnol offer gorsaf sylfaen cyfathrebu, offerynnau diagnostig meddygol (megis peiriannau CT, offer uwchsain), ac offerynnau manwl a mesuryddion. Gall greu edafedd manwl gywir ar swbstradau â waliau tenau fel plastigau ac aloion ysgafn, gan atal y tyllau edau rhag cracio oherwydd grym anwastad, a sicrhau sefydlogrwydd cysylltiadau cydrannau offer.
5. Maes Dyfeisiau Meddygol: Fe'i defnyddir mewn offer llawfeddygol (fel offer llawfeddygol orthopedig), cromfachau offer meddygol, ac ati Mae angen iddo fodloni safonau ymwrthedd cyrydiad gradd meddygol (fel llewys gwifren dur dur di-staen 316L), a all nid yn unig wella cryfder cysylltiadau edafu, ond hefyd osgoi rhyddhau ïonau metel, gan fodloni gofynion sterility meddygol a gwrthsefyll cyrydiad.
6. Hen Gae Atgyweirio Edau Offer: Ar gyfer tyllau edau hen offer sy'n llithro, megis canllawiau offer peiriannol, rholeri peiriannau argraffu, gorchuddion pwmp dŵr mawr, ac ati, nid oes angen ailddrilio ac ail-dapio i ehangu diamedr y twll. Trwy osod llewys gwifren ddur, gellir adfer y swyddogaeth threaded, gan ymestyn bywyd gwasanaeth yr offer a lleihau cost economaidd ailosod offer.
Gwybodaeth Sylfaenol
| Model Rhif. | M1.2-100 |
| Cyfeiriad Cylchdro | Chwith/Dde |
| Ardystiad | ISO, RoHS |
| Graddfa Fanwl | 6h |
| Handle Gosod | Wedi |
| Pecyn Trafnidiaeth | Bagiau Addysg Gorfforol + Cartonau + Paledi |
| Nod masnach | JBK |
| Cod HS | 7318190000 |
| Defnydd | Adeilad, Peiriannau, Meddygol, Roced, Llongau, Cemegol |
| Wedi'i addasu | Wedi'i addasu |
| Hyd | Customizable |
| Goddefgarwch Tymheredd | 932fahrenheit-1382fahrenheit |
| Manyleb | Pecyn 30cm x 26cm x 18cm |
| Tarddiad | Tsieina |
| Gallu Cynhyrchu | 3000000 Darn / Diwrnod |
FAQ
C: Beth yw'r tymor talu?
A: T / T & L / C yw'r telerau talu dewisol. Hefyd mae Western-Undeb yn dderbyniol ar gyfer taliadau gwerth isel, fel sampl' ffi Express.
C: Pa mor hir yw'ch amser dosbarthu?
A: Mae gennym stoc fawr, 3 diwrnod ar gyfer eitemau stoc, 7-15 diwrnod ar gyfer cynhyrchu.
C: A ydych chi'n darparu samplau? A yw'n rhad ac am ddim neu angen ffioedd ychwanegol?
A: Ydym, gallem gynnig samplau am ddim ar gyfer yr eitemau mewn stoc, dim ond angen talu'r gost cludo. Mae ffi yr Wyddgrug yn angenrheidiol ar gyfer eitem wedi'i haddasu.
C: Beth yw eich telerau talu?
A: 50% ymlaen llaw, 50% cyn ei ddanfon 100% ymlaen llaw os yw'n llai na USD5000.
C: Beth yw eich telerau pris?
A: EXW / FOB / CIF / CFR / FCA / CPT / CIP / DAP / DDP
C: Beth yw eich ystod cynnyrch?
A: Mae ein hystod cynnyrch yn cynnwys mewnosodiadau edau, mewnosodiadau cynffon, pecyn atgyweirio edau, offer mewnosod edau, mewnosodiadau edau hunan-dapio, a bysellau.
